Three-axis Milling Center KAFO CV – 14B with HEIDENHAIN iTNC620 System: The Ideal Choice for Precision Machining

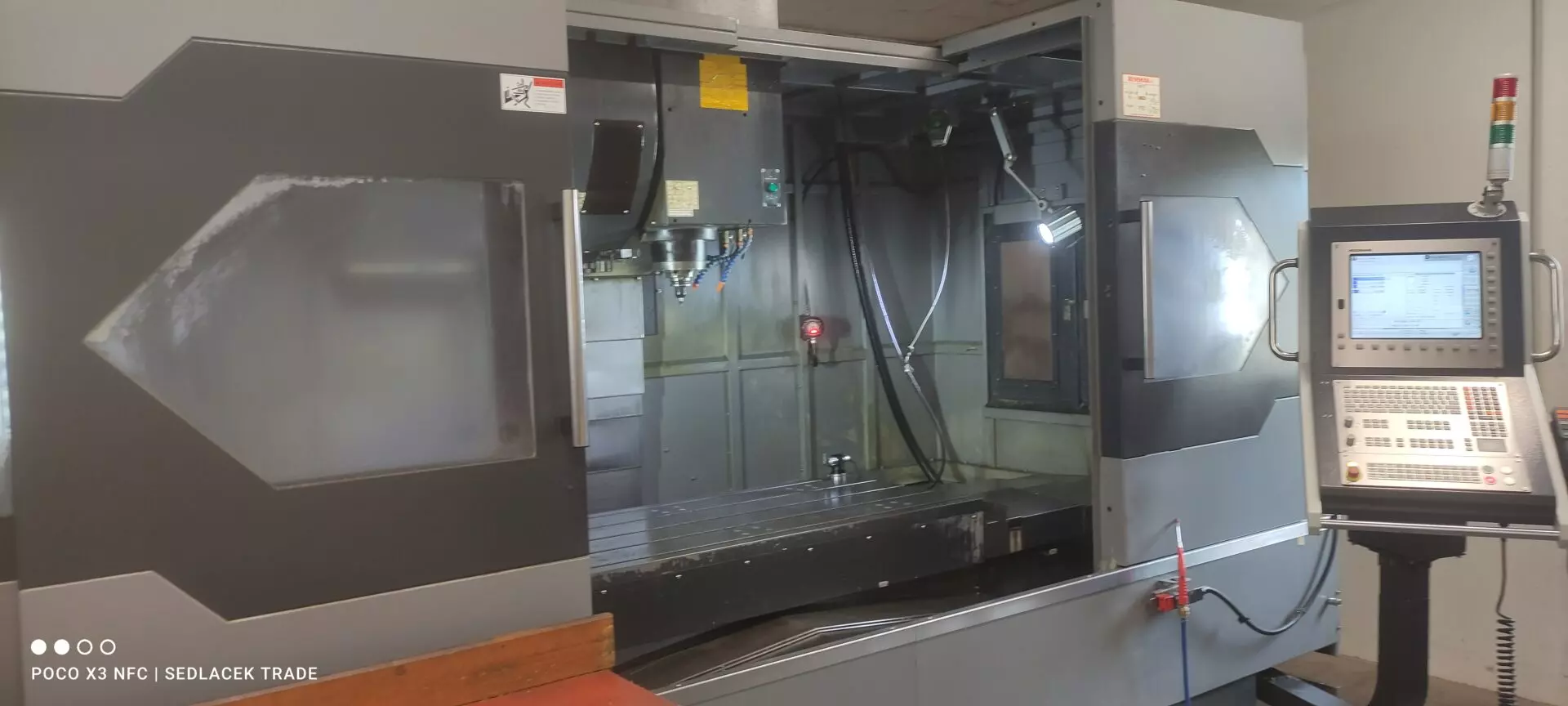

The three-axis milling center with the HEIDENHAIN iTNC620 system, known as Model CV-14B from the manufacturer KAFO , is a high-performance machine that offers top machining capabilities. With its features and specifications, this machine enables the efficient processing of molds and the production of very precise parts from a variety of materials, including steel, cast steel, cast iron and alloys of light and non-ferrous metals.

Features of the machine:

Robust Construction and Dimensions

With X, Y, Z axis travel measuring 1400 x 700 x 700 mm, this milling machine provides enough working space for various projects. With table dimensions of 1550×700 mm and a maximum load capacity of 1600 kg, it enables the processing of large and heavy parts.

High Performance

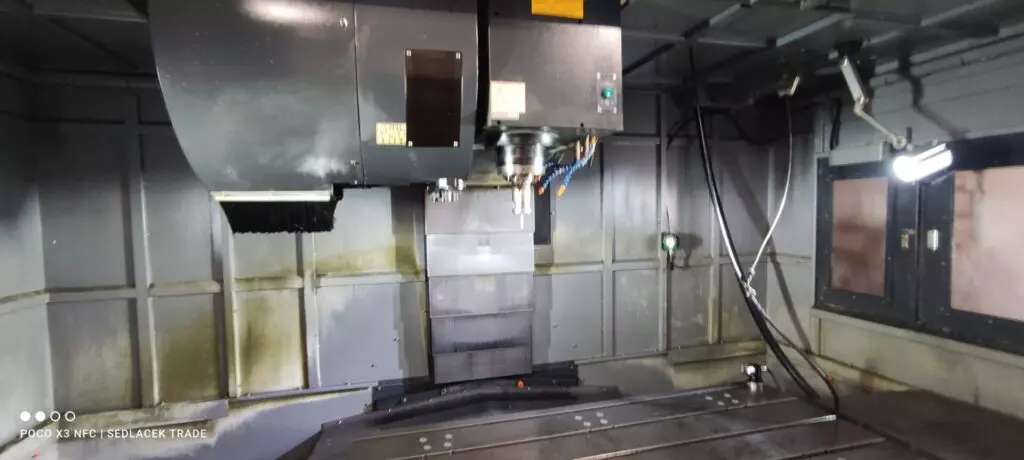

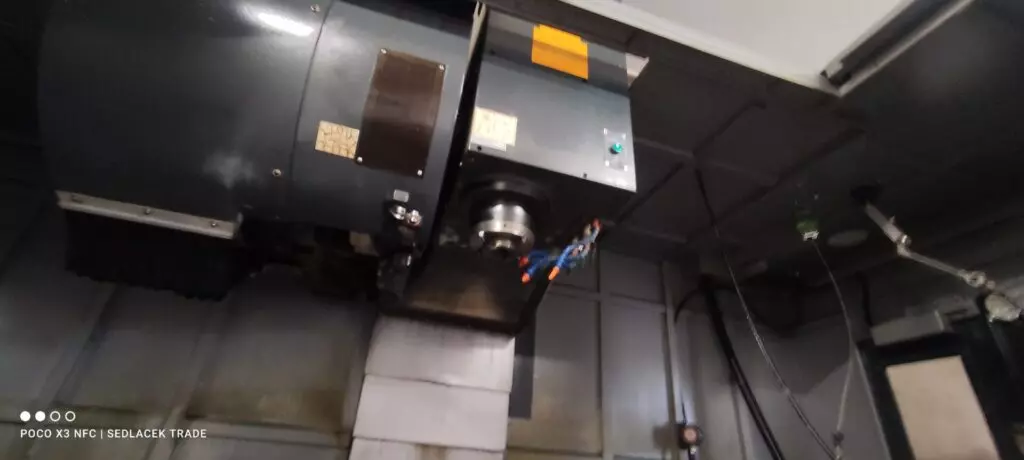

Spindle speed is a key parameter in machining. This machine features an 8000rpm belt head and 10000/12000/15000rpm direct drive, enabling fast and efficient milling in a wide range of materials.

Accuracy and Reliability

Thanks to the 45mm roller linear guide system and the high precision control of the HEIDENHAIN iTNC620, this machine is able to achieve very precise results. The distance from the spindle tip to the table surface is adjustable in the range of 100-800 mm, which allows optimization for different types of operations.

Flexibility

The Automatic Tool Change (ATC) system with a fast tool-to-tool change time of 2 seconds and a chip-to-chip time of 5 seconds increases production efficiency and enables quick switching between different tools.

Modern Design and Ease of Use

This model features a modern design that ensures easy operation and maintenance. The clear user interface of the HEIDENHAIN iTNC620 provides operators with intuitive control and the ability to program complex operations.

Conclusion

The three-axis milling center Model CV-14B from KAFO with the HEIDENHAIN iTNC620 system brings a combination of high performance, precision and reliability, which is an ideal choice for processing molds and manufacturing precision parts. With a maximum table load of 1600 kg and a robust construction, this machine is a suitable partner for various industrial applications .
